Positioning Devices in a Room

The visualization function in the nomos Controller allows you to graphically represent and personalize the structure of a room by uploading an image and positioning devices accordingly. This feature enhances the overview and simplifies device management.

Steps to Use the Visualization and Position Devices:

  1. Upload Image:

    • After initiating the visualization function via the "Visu" button for a room, upload an image of the room, such as a floor plan or room layout.

    • Step: Click "Upload Image" to select the image to be used for visualization.

  2. Manage Devices:

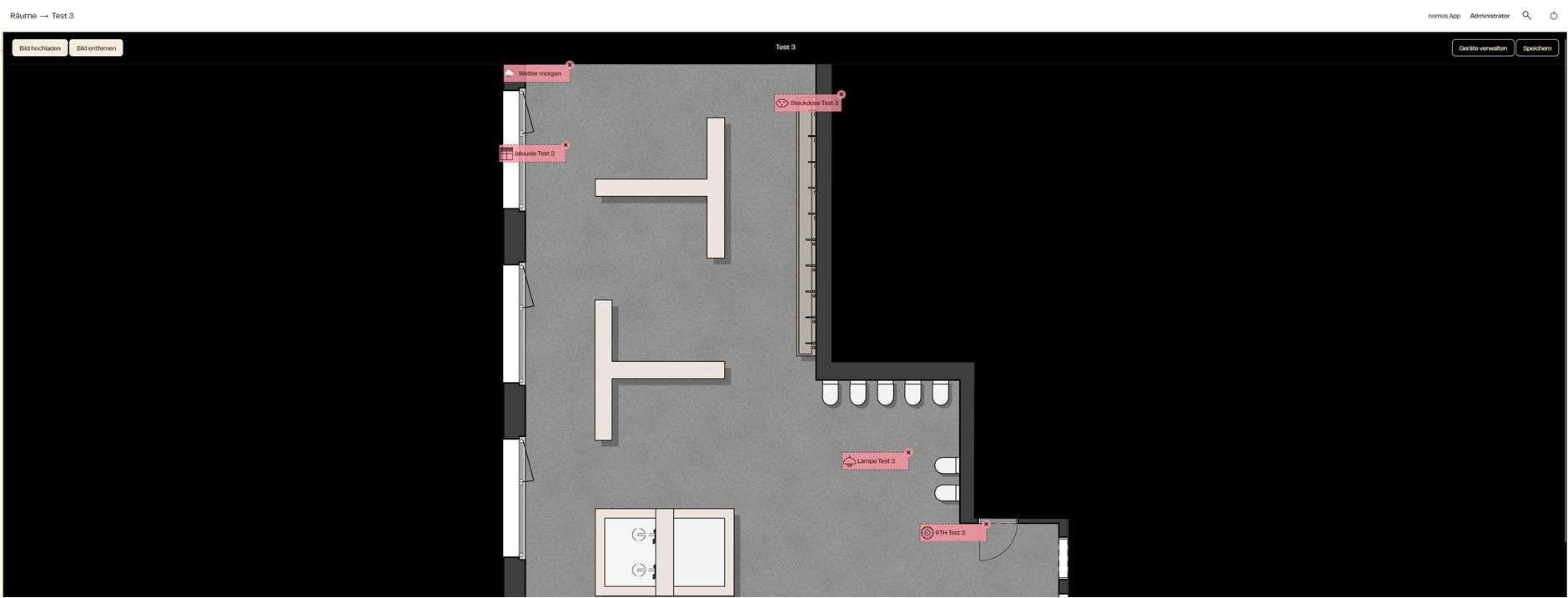

    • Once the image is uploaded, devices assigned to the room appear as pink fields on the screen. Each of these fields represents a device, such as:

      • Lampe Test 2

      • RTH Test 2 (Thermostat)

      • Steckdose Test 2 (Lighting)

      • Current Weather

    • These devices can now be placed on the image.

  3. Move Devices:

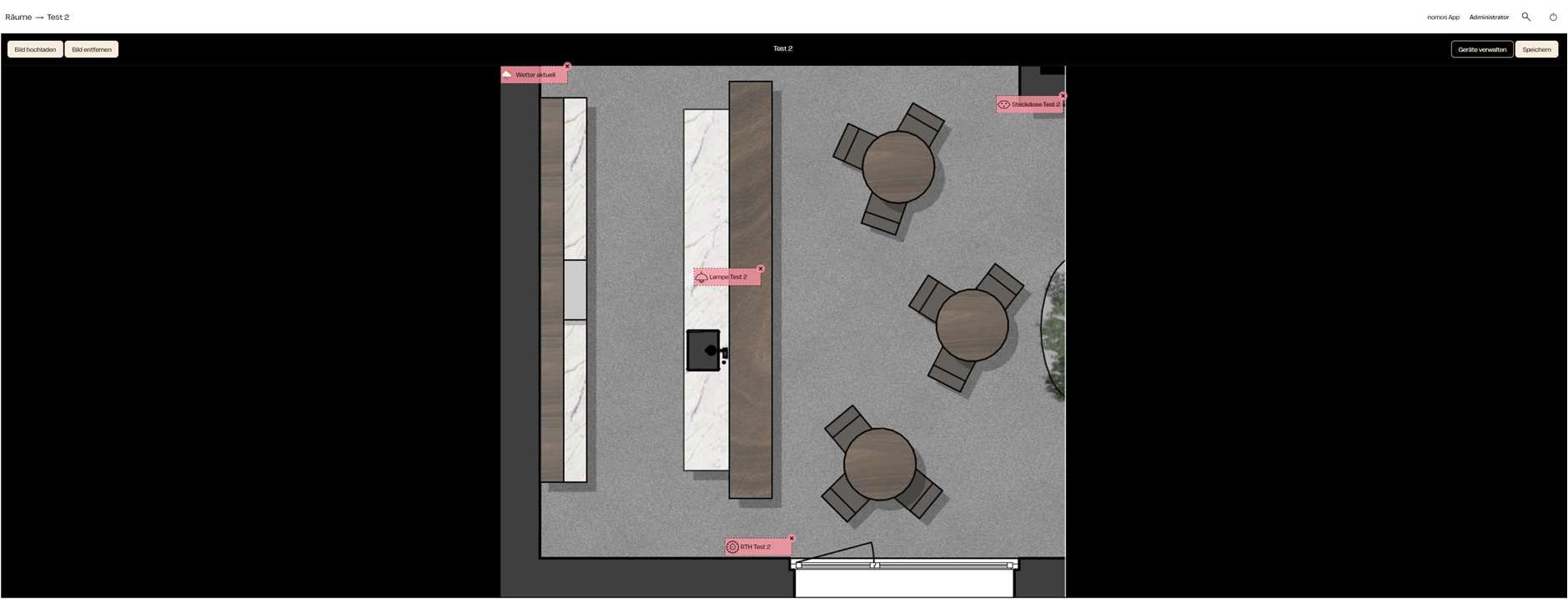

    • The pink fields representing the devices can be freely moved on the image.

    • Step: Drag each pink field to the location in the room where the respective device is physically situated, e.g., the lamp near a table or the socket on the wall.

    • This flexible arrangement helps reflect the actual physical placement of devices in the room

  4. Save Visualization:

    • After all devices are correctly placed on the image, click the "Save" button to secure the changes.

    • This visualization remains saved and can be edited at any time.

  5. Remove Image:

    • If you want to change or remove the image, you can click the “Remove Image” button and upload a new one.
